TU you - A change to TU: MM / C / CU MIXED in SD order

More than 1600 diagrams , 175 tunings !

(Pinned post ) IMPORTANT :

For those of you who are familiar with cent values in several temperaments, please use the diagram called «Minor cent» in the beginning.

Here you will find cent values for fifths, major thirds and minor thirds within the same graph.

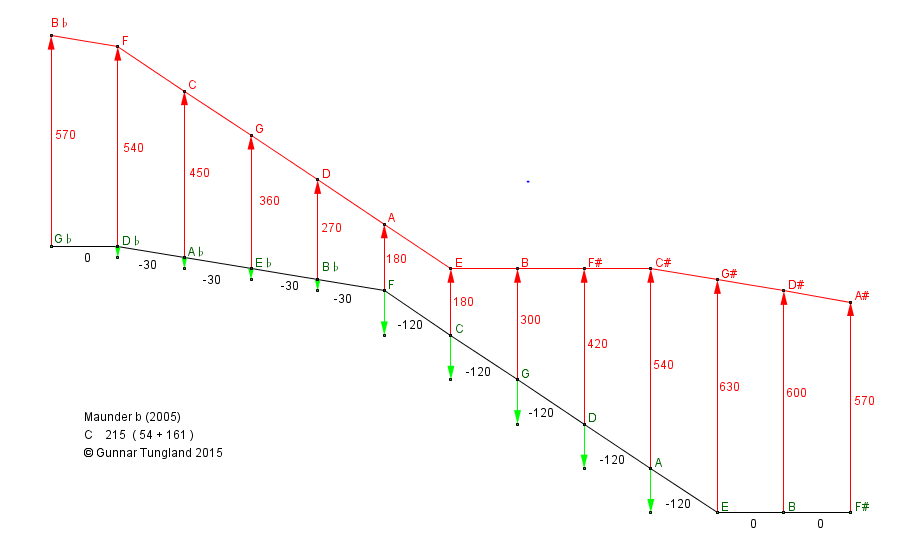

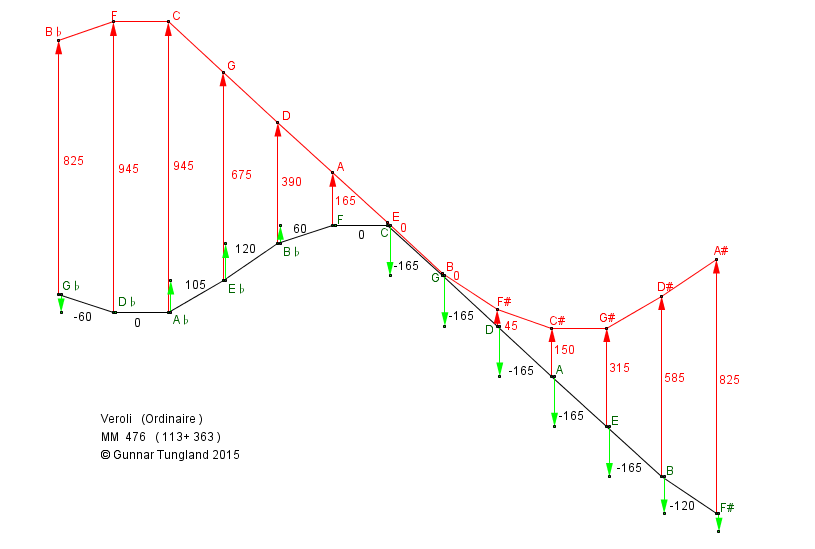

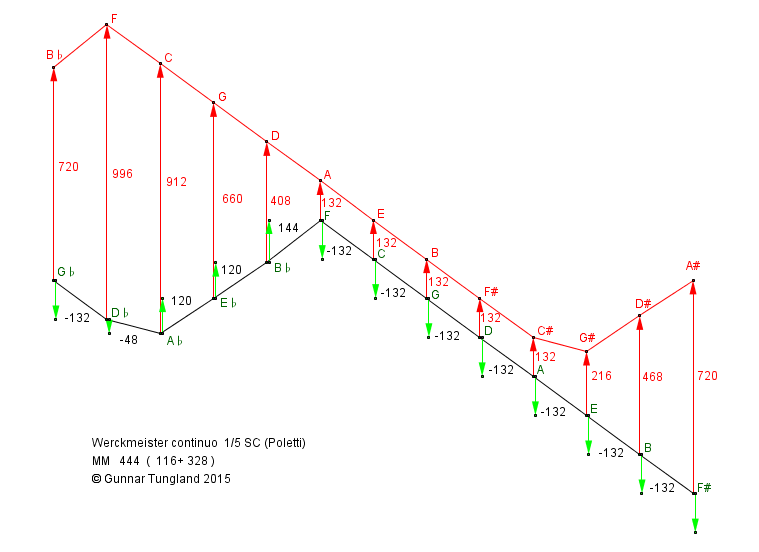

The red vectors is deviation from pure major third and blue vectors for minor third.

In the other diagrams I am using TU, but simply divide values by 30 to get a precise enough cent value.

Pythagorean comma = 23.46 cents = 720 TU

Syntonic comma = 21.51 cents = 660 TU.

(These numbers are easy to divide in 2,3,4,5,6...)

.................

The easiest way to get an overview of historical and newer tunings ! Read the Introduction (1) carefully and the diagrams will tell you much more than all the cent tables on the web.

Many of those who have found the key to the diagrams use this webside a lot.

If you have questions , let me hear, click HERE
